TMA-3B3
Base your cycling policy decisions on data.
The TMA-3B3 combines radar and lidar to accurately count bicycles and measure their speed on bike paths. Its installation is simple, fast and safe.
It is available in three different housings:

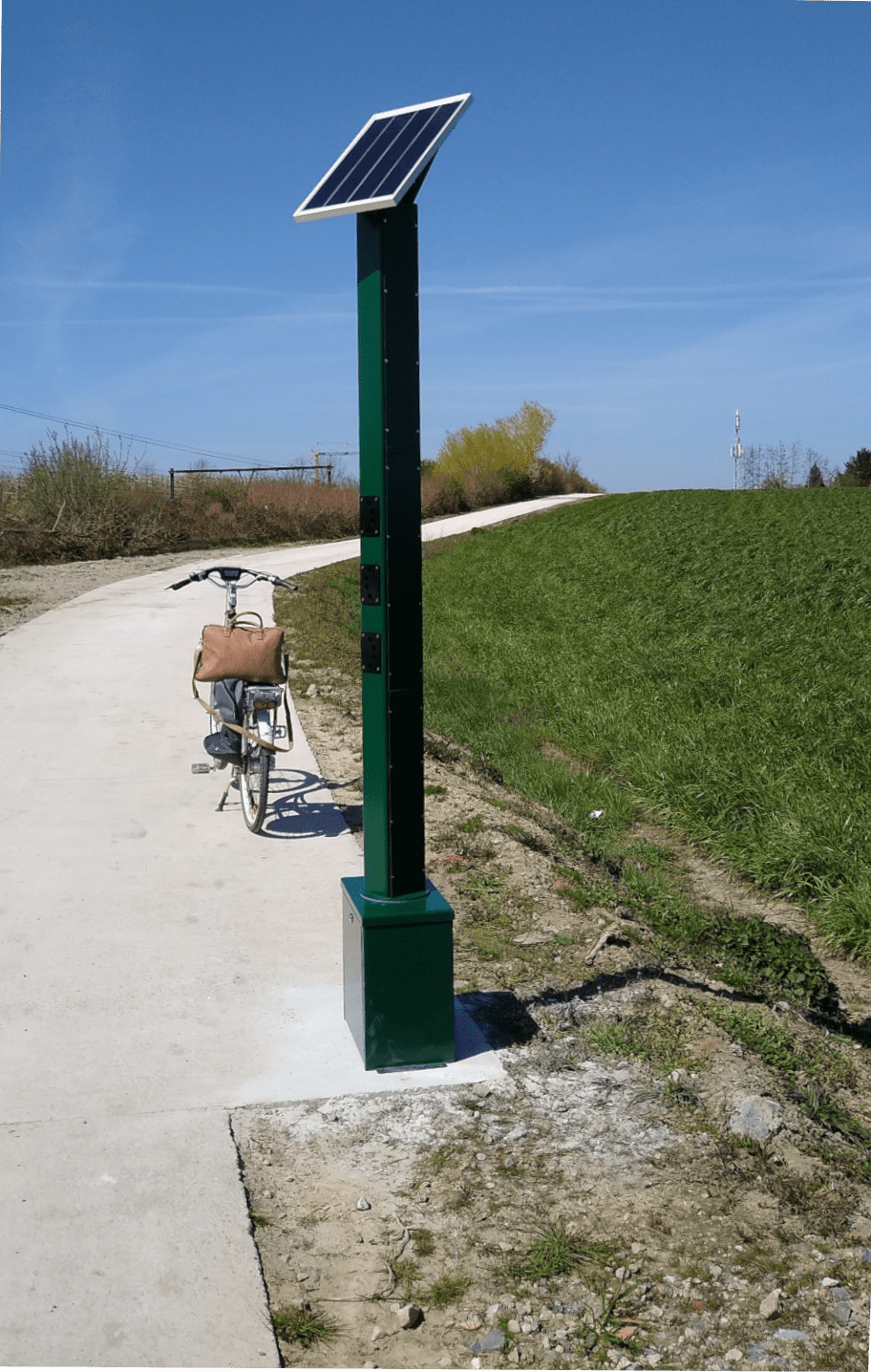

– The TOTEM contains the sensor, the battery, the modem and the solar panel in an all-in-one elegant coated stainless steel casing, making it easy to install, robust and fully autonomous;

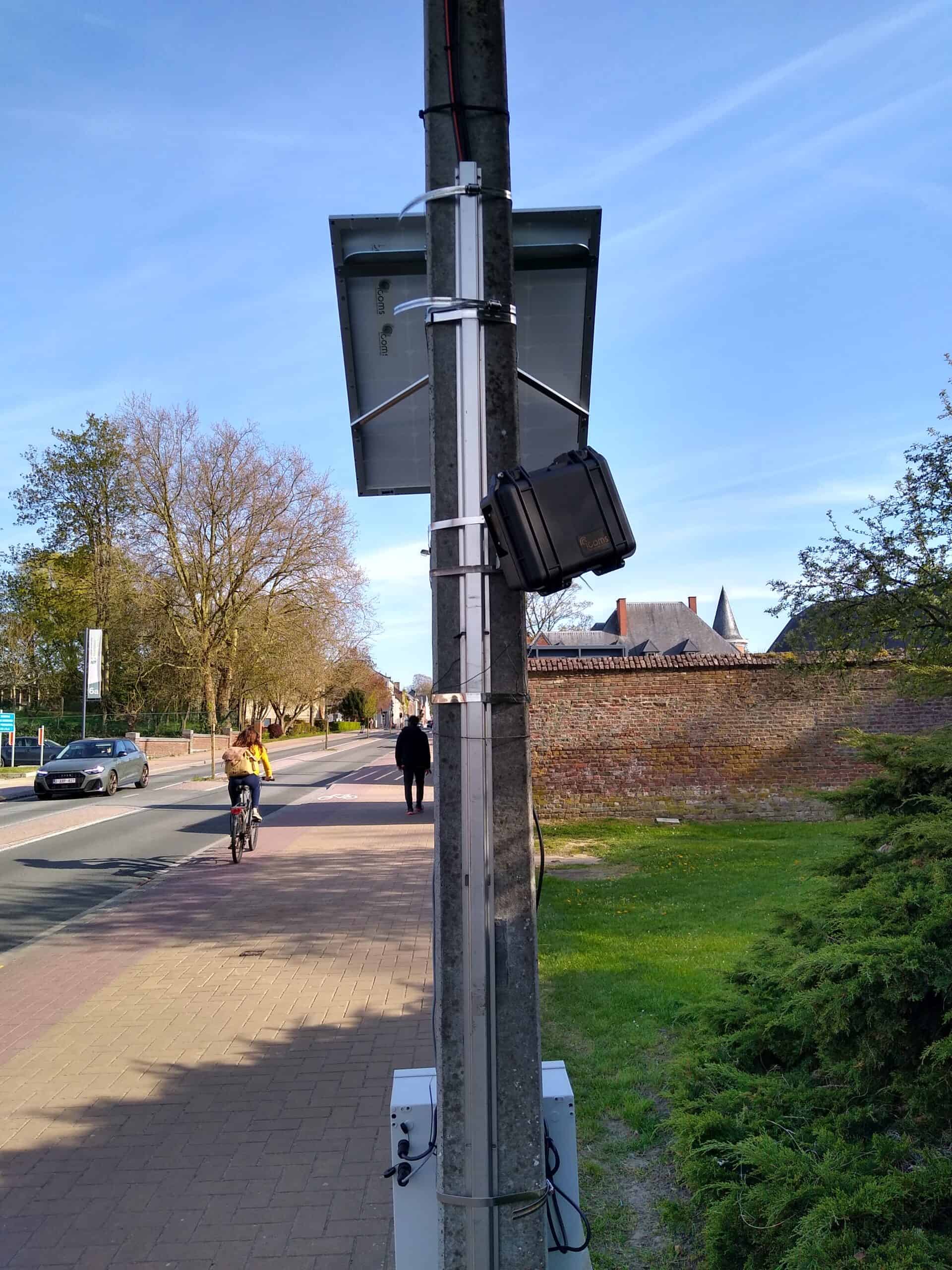

– The standard housing, for mobile applications, with a vandal resistant casing

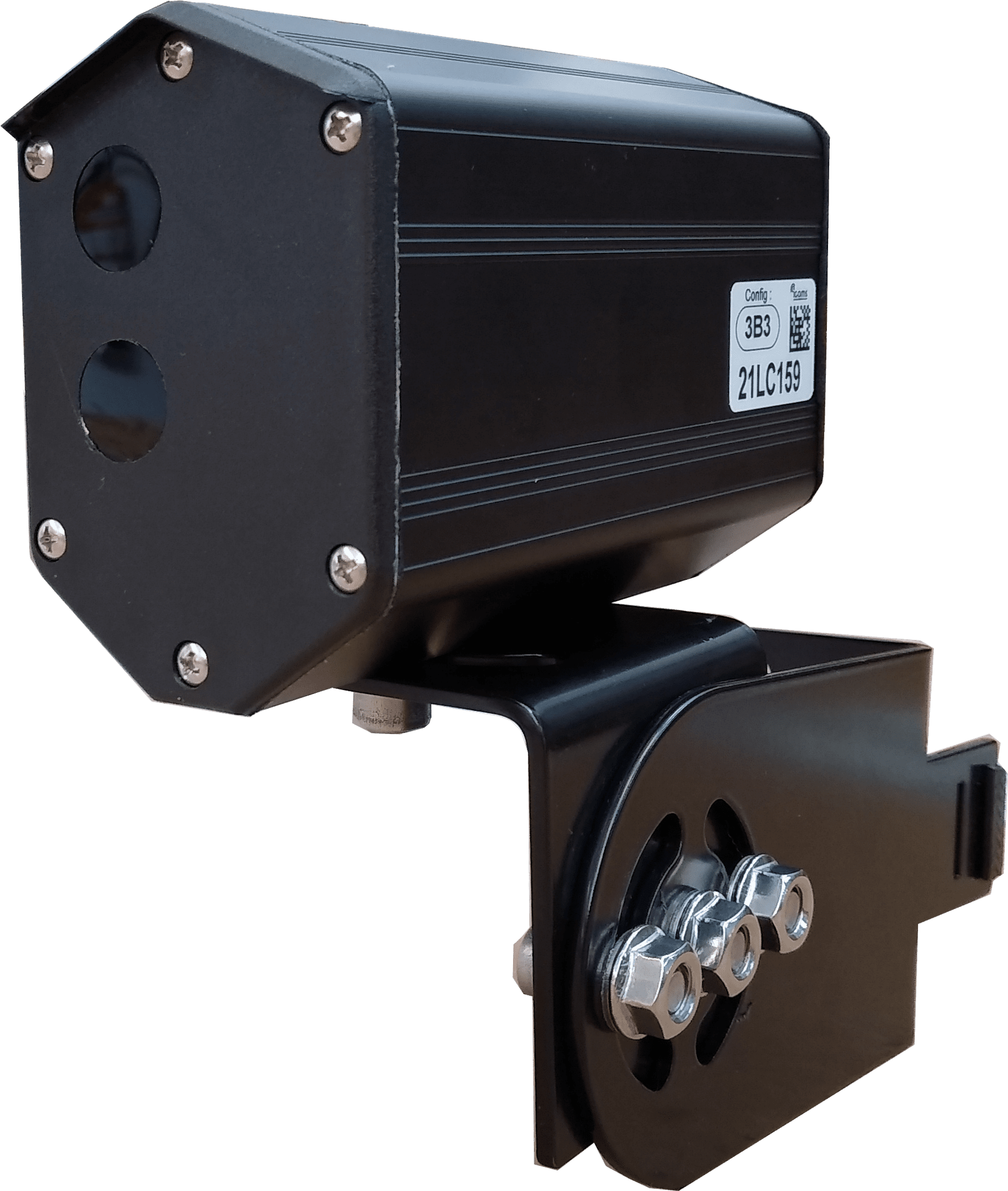

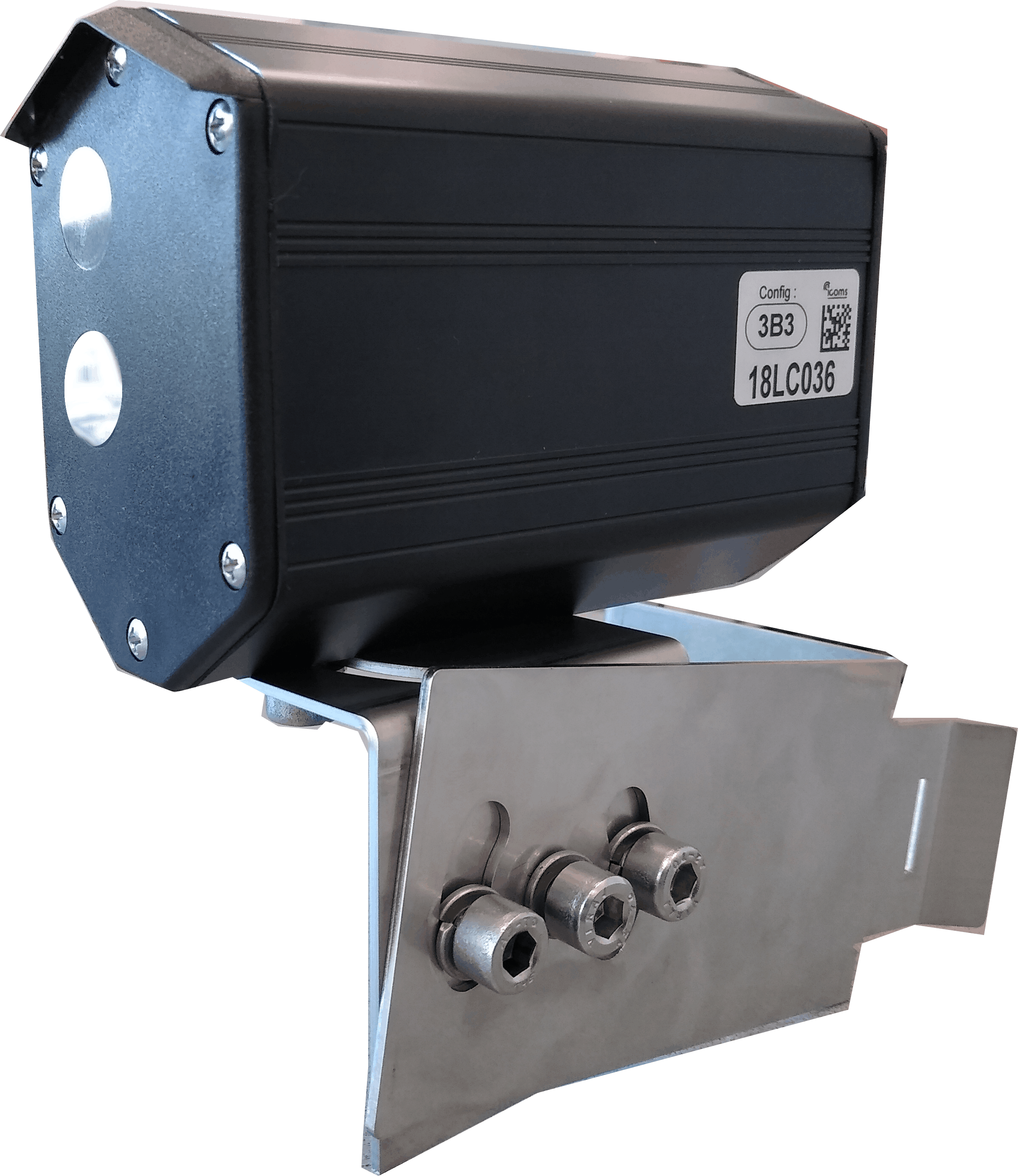

– The compact housing, for mobile applications, with a reduced size casing


Operation and strengths
Installed on a mast, the TMA-3B3 combines two technologies to provide optimal counting accuracy on the bike path. It is indeed able to count the number of cyclists in a group and to measure their individual speed.
- 97 % accuracy at peak hours (compared to manual counting)
- Non-intrusive
- Autonomous and mobile (can be powered by solar energy)
- Consistent performance day and night

Technical features
Detection direction |
bidirectional |
Size of unit |
|
Weight |
|
Protection degree |
IP65 |
Mount | specific mount provided, adapted M8 |
Operating temperature range |
from -20 °C to +60 °C |
Power supply | 12-16 V |
Power consumption | 130 mA @ 12 VDC |
Frequency | K-Band – 24.165-24.235 GHz + LIDAR |
User input (settings) |
RS-232 |
User output |
RS-232 + 4G modem or storage on SD card |
Use Case
Counting bicycles and measuring their speed on cycle paths in order to report traffic information to the public authority managing the cycle paths via a web platform.
The TMA-3B3, powered by solar energy, sends its data in real time via a GPRS network.
